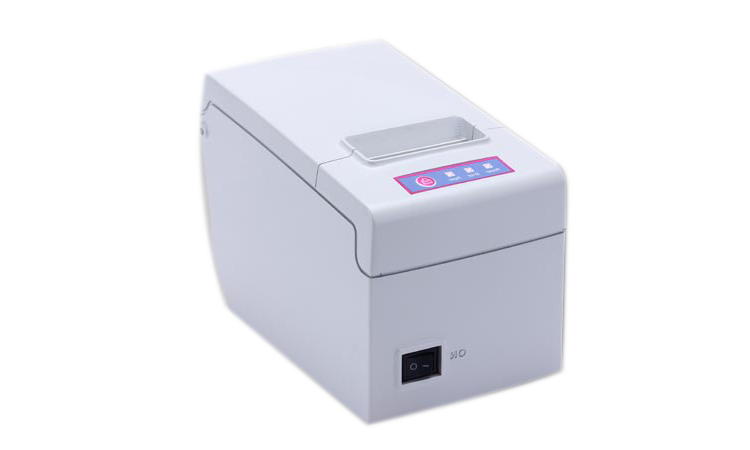

POS-E58 THERMAL RECIEPT PRINTER
POS-E58 Is A Mini 58MM Thermal Printer Which Cashingpos Tech Carefully Designed For Ordinary Paper Printing Service , The Design Exquisite Fashion, Small And Smart, With Highly Technological Sense. Using Large Motor And A Big Gear Movement Design, Drag 83MM Large Diameter Roll And Achieve 130 Mm / S High Speed Printing At The Same Time, The Perfect Solution To Solve The Problem Of Common 58mm Printer Support Small Diameter Roll, Print Speed Slow ,Enable Print More Efficient. At The Same Time, Provides A Rich Interface ,Including Network Port (100M), WIFI, Bluetooth, GPRS, Enable Print More Flexible And Convenient.
Product Performance
- Support LOGO Graphical download and print;
- 300 mm / second ultra high-speed printing, improve the printing efficiency;
- Excellent waterproof, anti - oil, anti-dust structure design;
- Support wall hanging function, meet the special environment printing;
- Movable baffle design, support 80MM, 58MM different width of the paper roll printing;
- Support 80MM large diameter roll;
- Support kitchen printing and Internet printing;
- Support printer monitoring function,to avoid losing bills;
- Using 100M Ethernet card, connect printer faster, to avoid losing bills
- Recover printing after netwok disconnection,to avoid losing bills;
- 2048K super input buffer,to avoid losing bills;
- Support LOGO Graphical download and print;
- Support 1D,2D bar code printing;
- Support order come remind and error alarm;
- Support black mark orientation and re-print
- GB18030 Large font;
- Support Multi language printing
- Richinterface:Internet+USB+COM;Internet+USB+WIFI;USB+GPRS;USB+COM
USB+Bluetooth; - Built-in WEB server,configure printer by IE browser;
- Compatible with ESC/POS print instruction mode;
- Support Windows,Linux,Android and IOS system printing
| Items | Parameters | |
| Print parameters | ||
| Printing Method | Thermal Line | |
| Printing Width | 72 MM | |
| Resolution | 576 Dots/Line or 512 Dots/Line（8dots/mm，203dpi） | |
| Printing Speed | 300mm/Second | |
| Interface Type | Internet（100M）+USB+COM；Internet（100M）+USB+WIFI； USB+GPRS；USB+COM；USB+Bluetooth |
|
| Line Spacing | 3.75 mm（Can adjust line spacing by command） | |
| Line No. | FontA-48Lines/FontB-64Lines/Simple,traditional Chinese-24 lines | |
| Character | Standard GB18030 simplified / traditional Chinese Fonts | |
| Character Size | ANK character，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Simplified/Traditional Chinese：3.0×3.0mm(24×24 dots） | |
| Barcode Character | ||
| Extended character set | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/ Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/ IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864) (Vietnam)/(Thai) |
|
| Bar code | 1D bar code：UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ | |
| Graphics Printing | Graphics printing | Supports bitmap download and print |
| Cutter | Cutter Function | Full cut/Half cut |
| Paper | Type | Thermal |
| Width | 79.5±0.5mm | |
| Diameter | ≤ 80mm | |
| Feed Method | Easy Feed(Clameshell feed) | |
| Print Commands | Commands | ESC/POS |
| Power | Power Adapter | Input：AC 100V-240V,50-60Hz Output：DC 24V/2.5A |
| Casher Drawer output | DC 24V/2.5A | |
| Buffer | Input Buffer | 2048K bytes |
| NV Flash | 256K bytes | |
| physical characteristics | Weight | 1.15KG |
| Dimension | 186*145*135(MM) | |
| Environment | Working | Temp：5 ~ 45℃， Humidity：10 ~ 80% |
| Storage | Temp：-10 ~ 50℃ ，Humidity：10 ~ 90%（No dew） | |
| Reliability parameter | Print Head Life | 100KM（print density≤12.5） |
| Cutter Life | 1000,000times | |
| Software | Driver | Android,IOS,Linux,,WinXP,Win7,Win8,Win8.1,Win10 |
